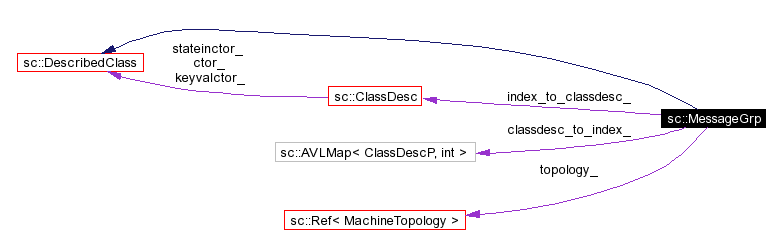

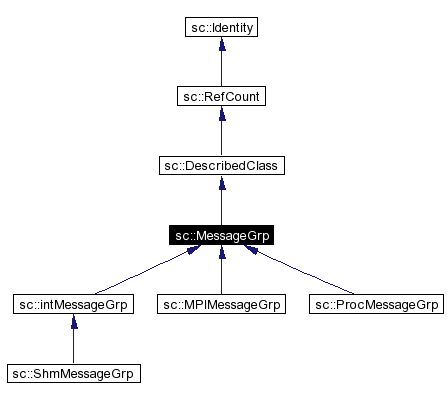

sc::MessageGrp Class Reference The MessageGrp abstract class provides a mechanism for moving data and objects between nodes in a parallel machine. More... #include <message.h> Inheritance diagram for sc::MessageGrp: [legend]Collaboration diagram for sc::MessageGrp: [legend]List of all members. Public Methods   MessageGrp ()   MessageGrp (const Ref< KeyVal > &) virtual  ~MessageGrp () int  n ()   Returns the number of processors. int  me ()   Returns my processor number. In the range [0,n()). virtual Ref< MessageGrp >  clone (void)=0   Returns a copy of this MessageGrp specialization that provides an independent communication context. virtual void  send (int target, double *data, int ndata)   Send messages sequentially to the target processor. More... virtual void  send (int target, unsigned int *data, int ndata) virtual void  send (int target, int *data, int ndata) virtual void  send (int target, char *data, int nbyte) virtual void  send (int target, unsigned char *data, int nbyte) virtual void  send (int target, signed char *data, int nbyte) virtual void  send (int target, short *data, int ndata) virtual void  send (int target, long *data, int ndata) virtual void  send (int target, float *data, int ndata) void  send (int target, double data) void  send (int target, int data) virtual void  raw_send (int target, void *data, int nbyte)=0 virtual void  sendt (int target, int type, double *data, int ndata)   Send typed messages to the target processor. More... virtual void  sendt (int target, int type, unsigned int *data, int ndata) virtual void  sendt (int target, int type, int *data, int ndata) virtual void  sendt (int target, int type, char *data, int nbyte) virtual void  sendt (int target, int type, unsigned char *data, int nbyte) virtual void  sendt (int target, int type, signed char *data, int nbyte) virtual void  sendt (int target, int type, short *data, int ndata) virtual void  sendt (int target, int type, long *data, int ndata) virtual void  sendt (int target, int type, float *data, int ndata) void  sendt (int target, int type, double data) void  sendt (int target, int type, int data) virtual void  raw_sendt (int target, int type, void *data, int nbyte)=0 virtual void  recv (int sender, double *data, int ndata)   Receive messages sent sequentually from the sender. More... virtual void  recv (int sender, unsigned int *data, int ndata) virtual void  recv (int sender, int *data, int ndata) virtual void  recv (int sender, char *data, int nbyte) virtual void  recv (int sender, unsigned char *data, int nbyte) virtual void  recv (int sender, signed char *data, int nbyte) virtual void  recv (int sender, short *data, int ndata) virtual void  recv (int sender, long *data, int ndata) virtual void  recv (int sender, float *data, int ndata) void  recv (int sender, double &data) void  recv (int sender, int &data) virtual void  raw_recv (int sender, void *data, int nbyte)=0 virtual void  recvt (int type, double *data, int ndata)   Receive messages sent by type. More... virtual void  recvt (int type, unsigned int *data, int ndata) virtual void  recvt (int type, int *data, int ndata) virtual void  recvt (int type, char *data, int nbyte) virtual void  recvt (int type, unsigned char *data, int nbyte) virtual void  recvt (int type, signed char *data, int nbyte) virtual void  recvt (int type, short *data, int ndata) virtual void  recvt (int type, long *data, int ndata) virtual void  recvt (int type, float *data, int ndata) void  recvt (int type, double &data) void  recvt (int type, int &data) virtual void  raw_recvt (int type, void *data, int nbyte)=0 virtual int  probet (int type)=0   Ask if a given typed message has been received. virtual void  bcast (double *data, int ndata, int from=0)   Do broadcasts of various types of data. More... virtual void  bcast (unsigned int *data, int ndata, int from=0) virtual void  bcast (int *data, int ndata, int from=0) virtual void  bcast (char *data, int nbyte, int from=0) virtual void  bcast (unsigned char *data, int nbyte, int from=0) virtual void  bcast (signed char *data, int nbyte, int from=0) virtual void  bcast (short *data, int ndata, int from=0) virtual void  bcast (long *data, int ndata, int from=0) virtual void  bcast (float *data, int ndata, int from=0) virtual void  raw_bcast (void *data, int nbyte, int from=0) void  bcast (double &data, int from=0) void  bcast (int &data, int from=0) virtual void  raw_collect (const void *part, const int *lengths, void *whole, int bytes_per_datum=1)   Collect data distributed on the nodes to a big array replicated on each node. void  collect (const double *part, const int *lengths, double *whole) virtual void  sum (double *data, int n, double *=0, int target=-1)   Global sum reduction. More... virtual void  sum (unsigned int *data, int n, unsigned int *=0, int target=-1) virtual void  sum (int *data, int n, int *=0, int target=-1) virtual void  sum (char *data, int n, char *=0, int target=-1) virtual void  sum (unsigned char *data, int n, unsigned char *=0, int target=-1) virtual void  sum (signed char *data, int n, signed char *=0, int target=-1) void  sum (double &data) void  sum (int &data) virtual void  max (double *data, int n, double *=0, int target=-1)   Global maximization. More... virtual void  max (int *data, int n, int *=0, int target=-1) virtual void  max (unsigned int *data, int n, unsigned int *=0, int target=-1) virtual void  max (char *data, int n, char *=0, int target=-1) virtual void  max (unsigned char *data, int n, unsigned char *=0, int target=-1) virtual void  max (signed char *data, int n, signed char *=0, int target=-1) void  max (double &data) void  max (int &data) virtual void  min (double *data, int n, double *=0, int target=-1)   Global minimization. More... virtual void  min (int *data, int n, int *=0, int target=-1) virtual void  min (unsigned int *data, int n, unsigned int *=0, int target=-1) virtual void  min (char *data, int n, char *=0, int target=-1) virtual void  min (unsigned char *data, int n, unsigned char *=0, int target=-1) virtual void  min (signed char *data, int n, signed char *=0, int target=-1) void  min (double &data) void  min (int &data) virtual void  reduce (double *, int n, GrpReduce< double > &, double *scratch=0, int target=-1)   Global generic reduction. More... virtual void  reduce (int *, int n, GrpReduce< int > &, int *scratch=0, int target=-1) virtual void  reduce (unsigned int *, int n, GrpReduce< unsigned int > &, unsigned int *scratch=0, int target=-1) virtual void  reduce (char *, int n, GrpReduce< char > &, char *scratch=0, int target=-1) virtual void  reduce (unsigned char *, int n, GrpReduce< unsigned char > &, unsigned char *scratch=0, int target=-1) virtual void  reduce (signed char *, int n, GrpReduce< signed char > &, signed char *scratch=0, int target=-1) virtual void  reduce (short *, int n, GrpReduce< short > &, short *scratch=0, int target=-1) virtual void  reduce (float *, int n, GrpReduce< float > &, float *scratch=0, int target=-1) virtual void  reduce (long *, int n, GrpReduce< long > &, long *scratch=0, int target=-1) void  reduce (double &data, GrpReduce< double > &r) void  reduce (int &data, GrpReduce< int > &r) virtual void  sync ()   Synchronize all of the processors. int  classdesc_to_index (const ClassDesc *)   Each message group maintains an association of ClassDesc with a global index so SavableState information can be sent between nodes without needing to send the classname and look up the ClassDesc with each transfer. More... const ClassDesc *  index_to_classdesc (int) int  nclass () const Static Public Methods void  set_default_messagegrp (const Ref< MessageGrp > &)   The default message group contains the primary message group to be used by an application. MessageGrp *  get_default_messagegrp ()   Returns the default message group. MessageGrp *  initial_messagegrp (int &argc, char **&argv)   Create a message group. More... Protected Methods void  initialize (int me, int n)   The classdesc_to_index_ and index_to_classdesc_ arrays cannot be initialized by the MessageGrp CTOR, because the MessageGrp specialization has not yet been initialized and communication is not available. More... Protected Attributes Ref< MachineTopology >  topology_ int  debug_ Detailed Description The MessageGrp abstract class provides a mechanism for moving data and objects between nodes in a parallel machine. Member Function Documentation virtual void sc::MessageGrp::bcast (  double *    data, int    ndata, int    from = 0 )  [virtual]   Do broadcasts of various types of data. Similar members exist for each of the basic types. int sc::MessageGrp::classdesc_to_index (  const ClassDesc *    )    Each message group maintains an association of ClassDesc with a global index so SavableState information can be sent between nodes without needing to send the classname and look up the ClassDesc with each transfer. These routines return information about that mapping. MessageGrp* sc::MessageGrp::initial_messagegrp (  int &    argc, char **&    argv )  [static]   Create a message group. This routine looks for a -messagegrp argument, then the environmental variable MESSAGEGRP to decide which specialization of MessageGrp would be appropriate. The argument to -messagegrp should be either string for a ParsedKeyVal constructor or a classname. If this returns null, it is up to the programmer to create a MessageGrp. void sc::MessageGrp::initialize (  int    me, int    n )  [protected]   The classdesc_to_index_ and index_to_classdesc_ arrays cannot be initialized by the MessageGrp CTOR, because the MessageGrp specialization has not yet been initialized and communication is not available. CTOR's of specializations of MessageGrp must call the initialize member in their body to complete the initialization process. virtual void sc::MessageGrp::max (  double *    data, int    n, double *    = 0, int    target = -1 )  [virtual]   Global maximization. Similar members exist for each of the basic types. virtual void sc::MessageGrp::min (  double *    data, int    n, double *    = 0, int    target = -1 )  [virtual]   Global minimization. Similar members exist for each of the basic types. virtual void sc::MessageGrp::recv (  int    sender, double *    data, int    ndata )  [virtual]   Receive messages sent sequentually from the sender. Similar members exist for each of the basic types. virtual void sc::MessageGrp::recvt (  int    type, double *    data, int    ndata )  [virtual]   Receive messages sent by type. Similar members exist for each of the basic types. virtual void sc::MessageGrp::reduce (  double *   , int    n, GrpReduce< double > &   , double *    scratch = 0, int    target = -1 )  [virtual]   Global generic reduction. Similar members exist for each of the basic types. Reimplemented in sc::MPIMessageGrp. virtual void sc::MessageGrp::send (  int    target, double *    data, int    ndata )  [virtual]   Send messages sequentially to the target processor. Similar members exist for each of the basic types. virtual void sc::MessageGrp::sendt (  int    target, int    type, double *    data, int    ndata )  [virtual]   Send typed messages to the target processor. Similar members exist for each of the basic types. virtual void sc::MessageGrp::sum (  double *    data, int    n, double *    = 0, int    target = -1 )  [virtual]   Global sum reduction. Similar members exist for each of the basic types. The documentation for this class was generated from the following file: message.h
