sc::AtomInfo Class Reference

The AtomInfo class provides information about atoms. More...

#include <atominfo.h>

Inheritance diagram for sc::AtomInfo:

Inheritance graph
[legend]

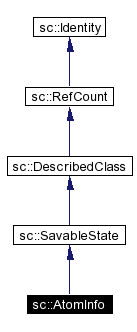

Collaboration diagram for sc::AtomInfo:

Collaboration graph
[legend]
List of all members.

Public Methods

 AtomInfo ()
 AtomInfo (const Ref< KeyVal > &)
 AtomInfo (StateIn &)
 ~AtomInfo ()
void save_data_state (StateOut &s)
 Save the base classes (with save_data_state) and the members in the same order that the StateIn CTOR initializes them. More...

double vdw_radius (int Z) const
 These return various measures of the atom's radius.

double bragg_radius (int Z) const
double atomic_radius (int Z) const
double maxprob_radius (int Z) const
double ip (int Z) const
 Returns the atomization potential for atomic number Z.

double vdw_radius_scale () const
 Return the scale factor for the VdW radii.

double bragg_radius_scale () const
 Return the scale factor for the Bragg radii.

double atomic_radius_scale () const
 Return the scale factor for the atomic radii.

double maxprob_radius_scale () const
 Return the scale factor for the maximum probability radii.

double rgb (int Z, int color) const
 These return information about the color of the atom for visualization programs.

double red (int Z) const
double green (int Z) const
double blue (int Z) const
double mass (int Z) const
 This returns the mass of the most abundant isotope.


Static Public Methods

const char * name (int Z)
 This returns the full name of the element.

const char * symbol (int Z)
 This returns the symbol for the element.

int string_to_Z (const char *, int allow_exceptions=1)
 This converts a name or symbol to the atomic number.


Detailed Description

The AtomInfo class provides information about atoms.

The information is kept in a file named atominfo.kv in the SC library directory. That information can be overridden by the user.


Member Function Documentation

void sc::AtomInfo::save_data_state StateOut   s [virtual]


Save the base classes (with save_data_state) and the members in the same order that the StateIn CTOR initializes them.

This must be implemented by the derived class if the class has data.

Reimplemented from sc::SavableState.


The documentation for this class was generated from the following file:
