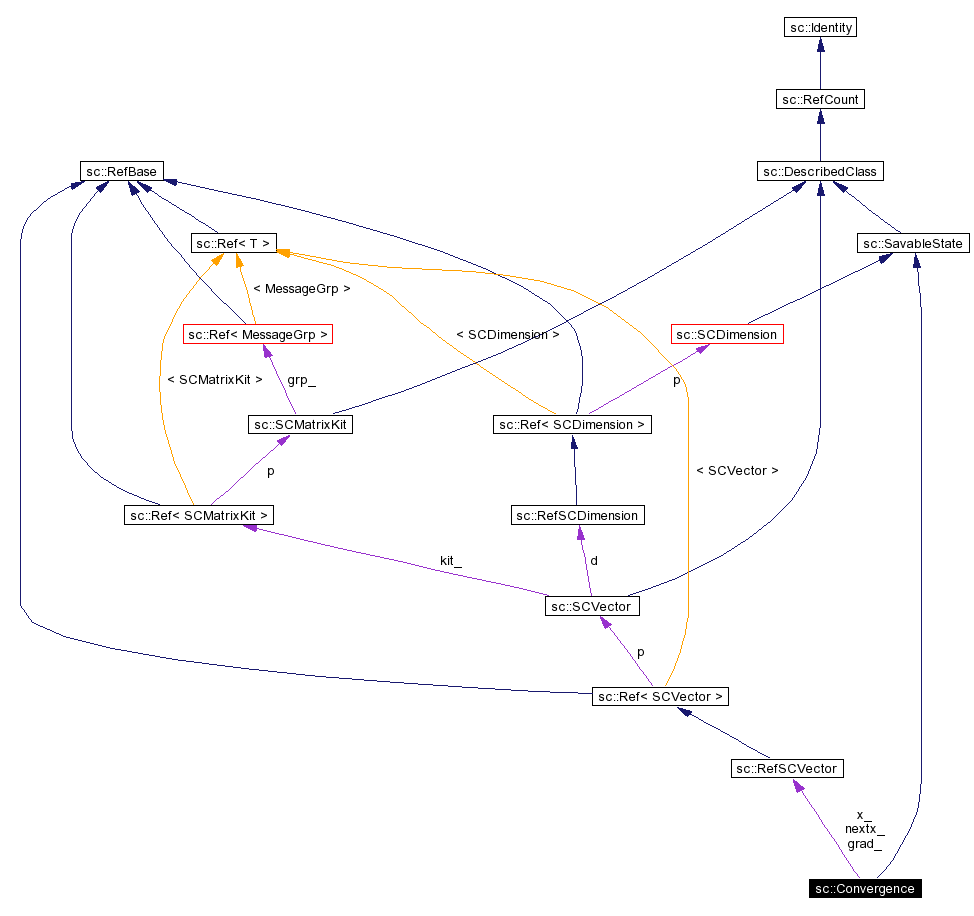

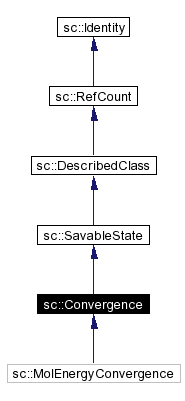

sc::Convergence Class Reference The Convergence class is used by the optimizer to determine when an optimization is converged. More... #include <conv.h> Inheritance diagram for sc::Convergence: [legend]Collaboration diagram for sc::Convergence: [legend]List of all members. Public Methods   Convergence ()   Convergence (double tolerance)   Convergence (StateIn &)   Convergence (const Ref< KeyVal > &)   The KeyVal constructor reads the following keywords:. More... virtual  ~Convergence () void  save_data_state (StateOut &)   Save the base classes (with save_data_state) and the members in the same order that the StateIn CTOR initializes them. More... virtual void  get_grad (const Ref< Function > &)   Set the current gradient and displacement. virtual void  get_x (const Ref< Function > &) virtual void  set_nextx (const RefSCVector &) virtual void  reset ()   Set the current gradient and displacement to null. virtual int  converged ()   Return nonzero if the optimization has converged. Protected Methods void  check_conv (const char *heading, double val, double bound, int &pass, int &fail) void  set_defaults () Protected Attributes RefSCVector  grad_ RefSCVector  x_ RefSCVector  nextx_ int  use_max_disp_ double  max_disp_ int  use_max_grad_ double  max_grad_ int  use_rms_disp_ double  rms_disp_ int  use_rms_grad_ double  rms_grad_ int  use_graddisp_ double  graddisp_ Detailed Description The Convergence class is used by the optimizer to determine when an optimization is converged. The KeyVal input for Convergence is given below. Giving none of these keywords is the same as giving the following input: conv<Convergence>: ( max_disp = 1.0e-6 max_grad = 1.0e-6 graddisp = 1.0e-6 ) Constructor & Destructor Documentation sc::Convergence::Convergence (  const Ref< KeyVal > &    )    The KeyVal constructor reads the following keywords:. max_disp The value of the maximum displacement must be less then the value of this keyword for the calculation to be converged. The default is to not check this parameter. However, if no other keyword are given, default convergence parameters are chosen as described above. max_grad The value of the maximum gradient must be less then the value of this keyword for the calculation to be converged. The default is to not check this parameter. However, if no other keyword are given, default convergence parameters are chosen as described above. rms_disp The value of the RMS of the displacements must be less then the value of this keyword for the calculation to be converged. The default is to not check this parameter. However, if no other keyword are given, default convergence parameters are chosen as described above. rms_grad The value of the RMS of the gradients must be less then the value of this keyword for the calculation to be converged. The default is to not check this parameter. However, if no other keyword are given, default convergence parameters are chosen as described above. graddisp The value of the scalar product of the gradient vector with the displacement vector must be less then the value of this keyword for the calculation to be converged. The default is to not check this parameter. However, if no other keyword are given, default convergence parameters are chosen as described above. Member Function Documentation void sc::Convergence::save_data_state (  StateOut &    )  [virtual]   Save the base classes (with save_data_state) and the members in the same order that the StateIn CTOR initializes them. This must be implemented by the derived class if the class has data. Reimplemented from sc::SavableState. The documentation for this class was generated from the following file: conv.h
