sc::IntegralV3 Class Reference

IntegralV3 computes integrals between Gaussian basis functions. More...

#include <intv3.h>

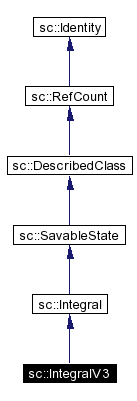

Inheritance diagram for sc::IntegralV3:

Inheritance graph
[legend]

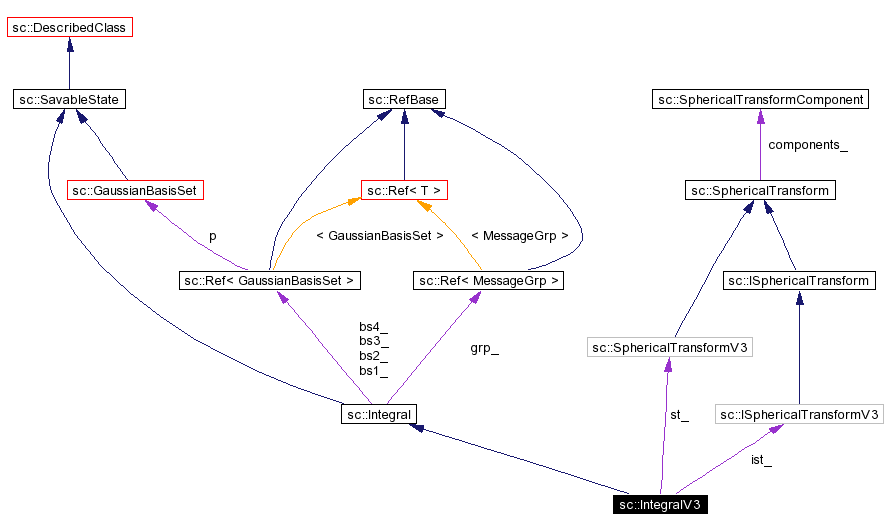

Collaboration diagram for sc::IntegralV3:

Collaboration graph
[legend]
List of all members.

Public Methods

 IntegralV3 (const Ref< GaussianBasisSet > &b1=0, const Ref< GaussianBasisSet > &b2=0, const Ref< GaussianBasisSet > &b3=0, const Ref< GaussianBasisSet > &b4=0)
 IntegralV3 (StateIn &)
 IntegralV3 (const Ref< KeyVal > &)
 ~IntegralV3 ()
void save_data_state (StateOut &)
 Save the base classes (with save_data_state) and the members in the same order that the StateIn CTOR initializes them. More...

CartesianIternew_cartesian_iter (int)
 Return a CartesianIter object. More...

RedundantCartesianIternew_redundant_cartesian_iter (int)
 Return a RedundantCartesianIter object. More...

RedundantCartesianSubIternew_redundant_cartesian_sub_iter (int)
 Return a RedundantCartesianSubIter object. More...

SphericalTransformIternew_spherical_transform_iter (int l, int inv=0, int subl=-1)
 Return a SphericalTransformIter object. More...

const SphericalTransformspherical_transform (int l, int inv=0, int subl=-1)
 Return a SphericalTransform object. More...

Ref< OneBodyIntoverlap ()
 Return a OneBodyInt that computes the overlap.

Ref< OneBodyIntkinetic ()
 Return a OneBodyInt that computes the kinetic energy.

Ref< OneBodyIntpoint_charge (const Ref< PointChargeData > &=0)
 Return a OneBodyInt that computes the integrals for interactions with point charges.

Ref< OneBodyIntnuclear ()
 Return a OneBodyInt that computes the nuclear repulsion integrals. More...

Ref< OneBodyInthcore ()
 Return a OneBodyInt that computes the core Hamiltonian integrals.

Ref< OneBodyIntefield_dot_vector (const Ref< EfieldDotVectorData > &=0)
 Return a OneBodyInt that computes the electric field integrals dotted with a given vector.

Ref< OneBodyIntdipole (const Ref< DipoleData > &=0)
 Return a OneBodyInt that computes dipole moment integrals.

Ref< OneBodyDerivIntoverlap_deriv ()
 Return a OneBodyDerivInt that computes overlap derivatives.

Ref< OneBodyDerivIntkinetic_deriv ()
 Return a OneBodyDerivInt that computes kinetic energy derivatives.

Ref< OneBodyDerivIntnuclear_deriv ()
 Return a OneBodyDerivInt that computes nuclear repulsion derivatives.

Ref< OneBodyDerivInthcore_deriv ()
 Return a OneBodyDerivInt that computes core Hamiltonian derivatives.

Ref< TwoBodyIntelectron_repulsion ()
 Return a TwoBodyInt that computes electron repulsion integrals.

Ref< TwoBodyDerivIntelectron_repulsion_deriv ()
 Return a TwoBodyDerivInt that computes electron repulsion derivatives.

void set_basis (const Ref< GaussianBasisSet > &b1, const Ref< GaussianBasisSet > &b2=0, const Ref< GaussianBasisSet > &b3=0, const Ref< GaussianBasisSet > &b4=0)
 Set the basis set for each center.


Detailed Description

IntegralV3 computes integrals between Gaussian basis functions.


Member Function Documentation

CartesianIter* sc::IntegralV3::new_cartesian_iter int    [virtual]


Return a CartesianIter object.

The caller is responsible for freeing the object.

Implements sc::Integral.

RedundantCartesianIter* sc::IntegralV3::new_redundant_cartesian_iter int    [virtual]


Return a RedundantCartesianIter object.

The caller is responsible for freeing the object.

Implements sc::Integral.

RedundantCartesianSubIter* sc::IntegralV3::new_redundant_cartesian_sub_iter int    [virtual]


Return a RedundantCartesianSubIter object.

The caller is responsible for freeing the object.

Implements sc::Integral.

SphericalTransformIter* sc::IntegralV3::new_spherical_transform_iter int    l,
int    inv = 0,
int    subl = -1
[virtual]


Return a SphericalTransformIter object.

The caller is responsible for freeing the object.

Implements sc::Integral.

Ref<OneBodyInt> sc::IntegralV3::nuclear   [virtual]


Return a OneBodyInt that computes the nuclear repulsion integrals.

Charges from the atoms on the center one are used.

Implements sc::Integral.

void sc::IntegralV3::save_data_state StateOut   [virtual]


Save the base classes (with save_data_state) and the members in the same order that the StateIn CTOR initializes them.

This must be implemented by the derived class if the class has data.

Reimplemented from sc::Integral.

const SphericalTransform* sc::IntegralV3::spherical_transform int    l,
int    inv = 0,
int    subl = -1
[virtual]


Return a SphericalTransform object.

The pointer is only valid while this Integral object is valid.

Implements sc::Integral.


The documentation for this class was generated from the following file:
Generated at Fri Jan 10 08:15:14 2003 for MPQC 2.1.3 using the documentation package Doxygen 1.2.14.
