sc::SCDimension Class Reference

The SCDimension class is used to determine the size and blocking of matrices. More...

#include <dim.h>

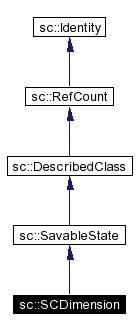

Inheritance diagram for sc::SCDimension:

Inheritance graph
[legend]

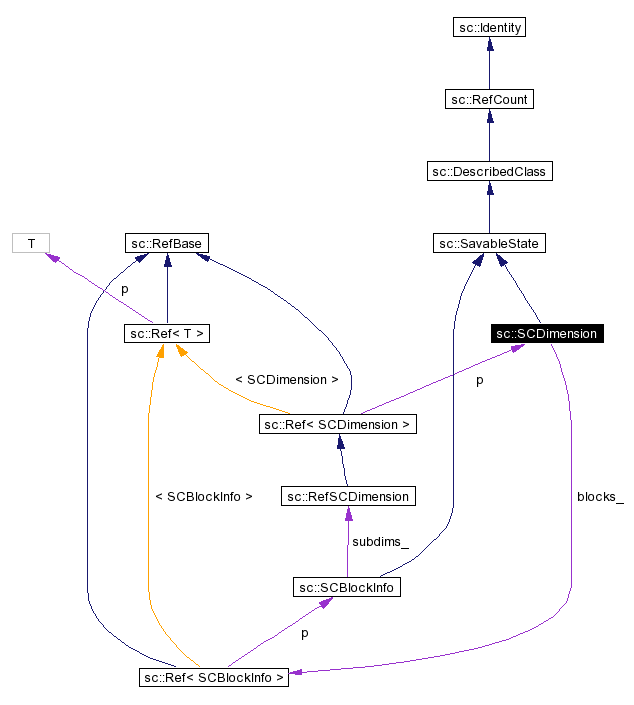

Collaboration diagram for sc::SCDimension:

Collaboration graph
[legend]
List of all members.

Public Methods

 SCDimension (int n, const char *name=0)
 Create a dimension with an optional name. More...

 SCDimension (const Ref< SCBlockInfo > &, const char *name=0)
 SCDimension (int n, int nblocks, const int *blocksizes=0, const char *name=0)
 SCDimension (const Ref< KeyVal > &)
 The KeyVal constructor. More...

 SCDimension (StateIn &s)
 ~SCDimension ()
void save_data_state (StateOut &)
 Save the base classes (with save_data_state) and the members in the same order that the StateIn CTOR initializes them. More...

int equiv (const SCDimension *) const
 Test to see if two dimensions are equivalent.

int n () const
 Return the dimension.

const char * name () const
 Return the name of the dimension. More...

Ref< SCBlockInfoblocks ()
 Return the blocking information for this dimension.

void print (std::ostream &o=ExEnv::out0()) const
 Print information about this dimension to o.


Protected Methods

 SCDimension (const char *name=0)

Protected Attributes

char * name_
int n_
Ref< SCBlockInfoblocks_

Detailed Description

The SCDimension class is used to determine the size and blocking of matrices.

The blocking information is stored by an object of class SCBlockInfo.


Constructor & Destructor Documentation

sc::SCDimension::SCDimension int    n,
const char *    name = 0


Create a dimension with an optional name.

The name is a copy of the '0' terminated string name.

sc::SCDimension::SCDimension const Ref< KeyVal > &


The KeyVal constructor.

n
This gives size of the dimension. One of n or blocks is required.

blocks
The block information for the dimension can be given as a SCBlockInfo object. One of n or blocks is required.


Member Function Documentation

const char* sc::SCDimension::name   const [inline]


Return the name of the dimension.

If no name was given to the constructor, then return 0.

void sc::SCDimension::save_data_state StateOut   [virtual]


Save the base classes (with save_data_state) and the members in the same order that the StateIn CTOR initializes them.

This must be implemented by the derived class if the class has data.

Reimplemented from sc::SavableState.


The documentation for this class was generated from the following file:
Generated at Fri Jan 10 08:16:41 2003 for MPQC 2.1.3 using the documentation package Doxygen 1.2.14.
